Nawiatr N650 has been designed to follow the rules of 650’s class in popular in Poland PPJK's regattas. The building method was compilation of “one-off” method with big parts made in historical Nawiatr 665's moulds. According to 650's class rules yacht had accommodation for 4 people with 1,25 m high in the cabin. Yacht was rigged with single swept spreader cabin steeped aluminum mast. The boom and retractable prod was made also from aluminum. Sandwich construction was based on 10 millimeters Airex and Herex PVC foam and epoxy resin. Vacuum bagging and sandwich combination gave very light and strong hull with final weight of 200kg. Low wetted area and big sails made N650 very fast, but easy maneuverable yacht. N650 won several regattas in 2002 and 2003 beat even yachts from higher 730’s class. Here you can find some results. Presented design is prepared for "one-off" method and is recommended rather for advanced boat builders.
Would you require any clarifications, with regards to the presented construction, please do not hesitate to contact us .

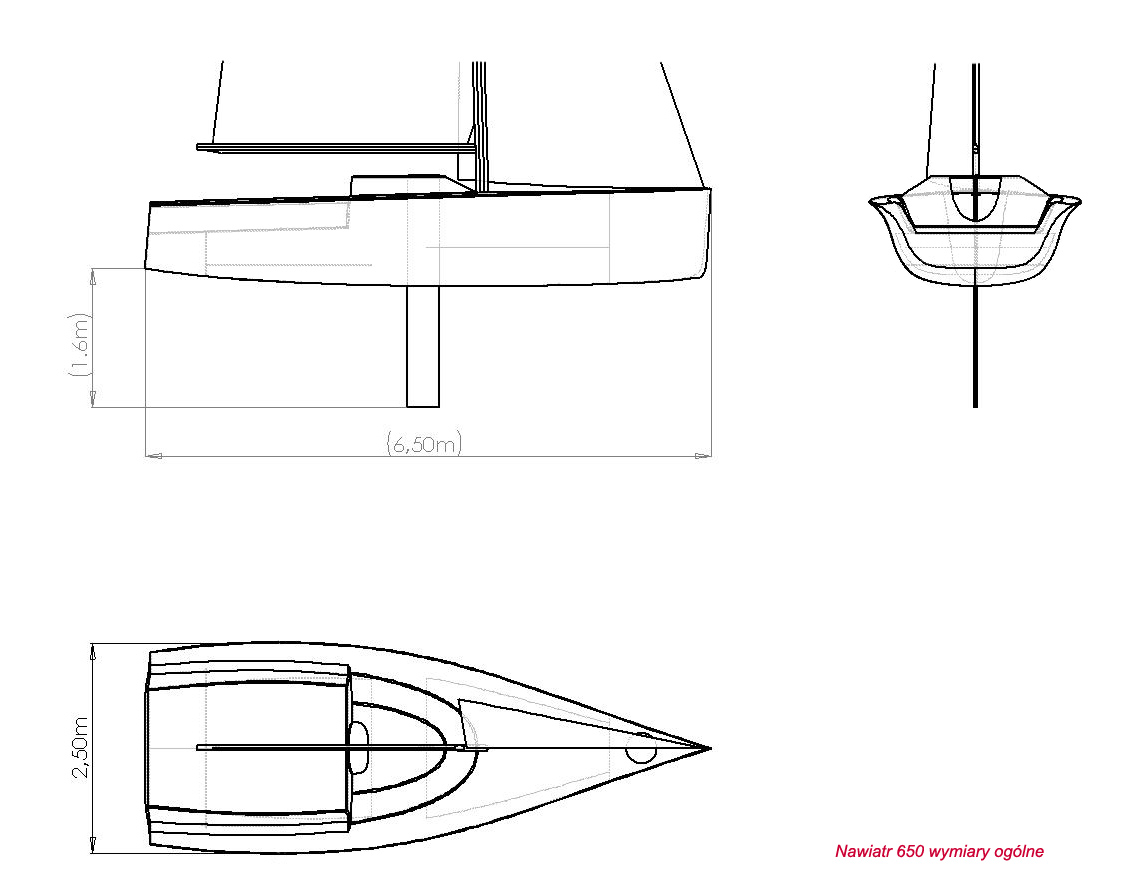

Dimensions of N650
Main dimensions

PDF brochure of N650
PDF brochure

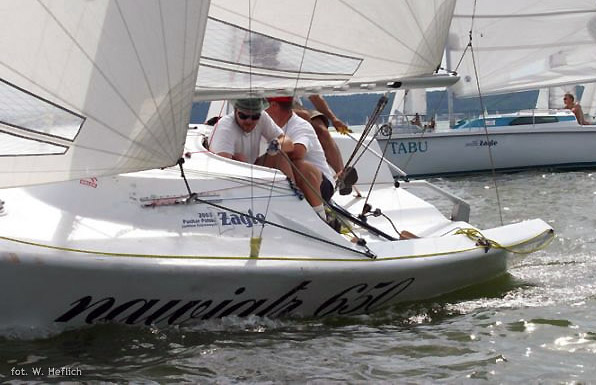

Photos of N650
Photos


Technical data:
Length: 6,50 m
Width: 2,50 m
Draft: 0,20/1,40 m
Displacement: 900 kg
Crew: 3-4
Sails up wind: 26 m2
Sails down wind: 52 m2


N650
